Engine Swap Kit – VW MK2 VR6

Fabless Manufacturing SKU: 29-2000

5.0 / 5.0 based on 4 reviews

$1,685.00 USD

Shipping calculated at checkout

Only 3 left!

Mk2 VR6 Swap kits are back up for sale with a shipping date in late June, we are currently waiting on our run of axles, if you would like to receive your mounts sooner please send us an email after purchasing and we can setup separate shipping options for you.

Thanks for your patience.

 Benefits

  • Keep your MK2 k-frame, our mounts bolt right up to it
  • Already have a MK3 subframe? No problem we have that option too
  • 4 bolt & 5 bolt spindle options
  • MK2 and MK3 Axle Width Options

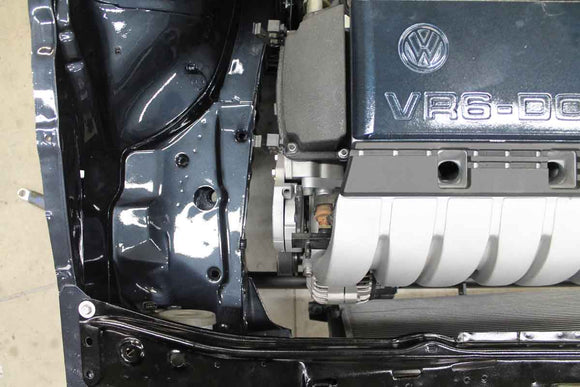

  • Creates clearance for the belts and water pump, no hammering, no cutting

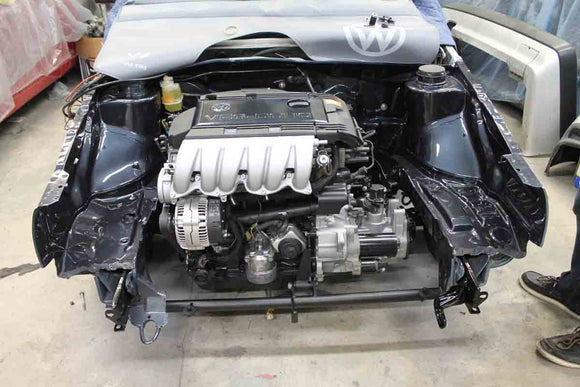

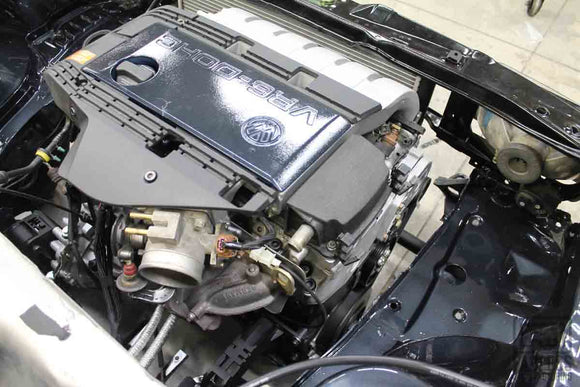

  • Engine fits flat and is more centered in the bay
  • No hunting for hard to find MK3 engine mounts or sub-frames
  • 100% bolt in to the MK2 chassis using MK2 parts
  • Increased strength and better handling for both mounts and axles

Purchase the FM MK2 VR6 Engine Swap Kit and enjoy all the benefits of the VR6 engine, with the highest quality manufacturing solution on the market. Quality manufacturing every time.

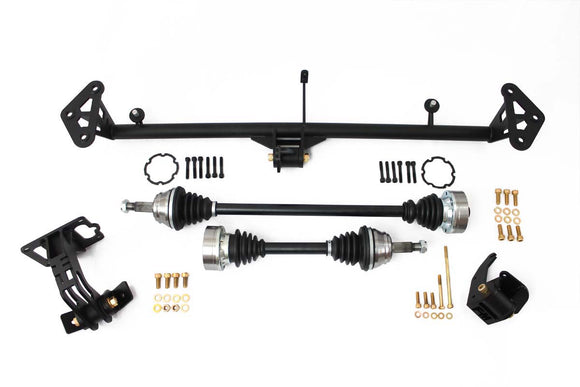

What’s Included

  • Block Mount
  • Transmission Mount
  • Tubular Front Cross Bar
  • Front Engine Mount
  • Polyurethane Bushings
  • Yellow Zinc Mounting Hardware
  • Axles with inner and outer CV`s
  • Axle gaskets and hardware

Add-ons

  • Adjustable Upper VR6 Rad Mounts
  • Polyurethane Jack Pad
  • Hydraulic Clutch Conversion Kit – MK2
  • Tubular Control Arms – MK2

Compatibility

MK2 VW Golf/Jetta Chassis LHD and RHD compatible.

We have this product fit and tested in both a left hand drive North American car and a right hand drive European car. PLEASE NOTE, AFP MK4 12V Intake manifold will not clear the hood.

VR6 Engines

  • 2.8L 12v
  • 2.8L 24v
  • 3.2L
  • 3.6L

Transmission

  • 02A or 02J 5 speed transmission (100mm cups) (VR6 trans)

Radiator

  • MK3 VR6 radiator

Down Pipe

  • Aftermarket or OEM VR6 down pipes will require some modification to accommodate the leveled out engine position as well as the additional frame rail clearance.

Details

This product is made, designed, fit and tested by Fabless Manufacturing in Canada. Over a year of Research and Development has gone into the design and fitment of this kit. It’s been a long time coming and we are excited to finally share this MK2 VR6 solution with you all.

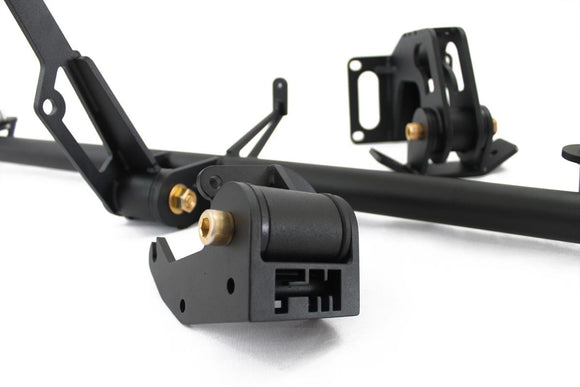

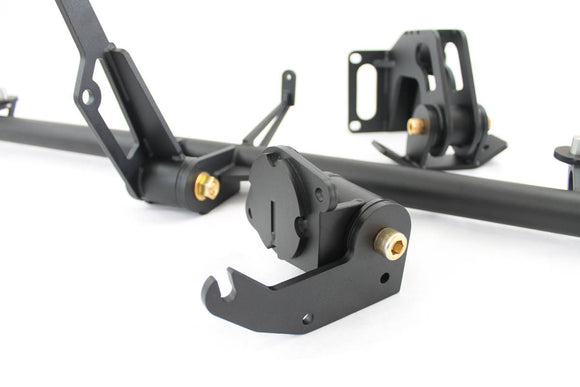

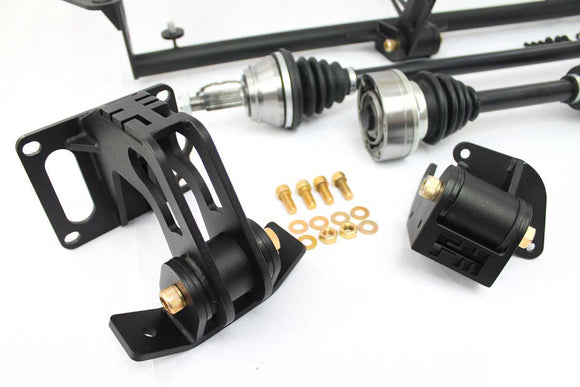

Engine Mounts

The engine mounts are made out of steel and are TIG welded. The mounts come finished with black sandtex powder coat and feature polyurethane bushings and stainless steel bushing inserts. These mounts are heavy duty and can stand up to the job. The polyurethane bushings add stability, rigidity and handling while keeping driver comfort and minimizing vibration.

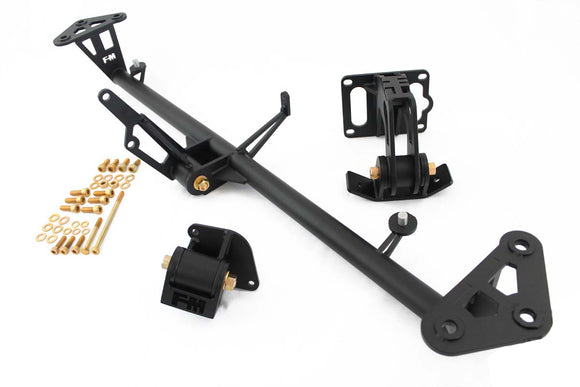

Tubular Front Cross Bar

Our Tubular Front Cross Bar adds strength and rigidity while still maintaining driver comfort. This item features an integrated jack point right under the front engine mount. The Polyurethane Jack Pad (Add-on) fits in the square cutout to protect the powder coat and prevent unnecessary scratches.

Axles

The axles and CV joints allow fitment between the 02A/02J transmission and your choice of axles; MK2 or MK3 width, 4-bolt or 5-bolt. The axles were designed for this application and are a custom length to compliment the centered engine position. They are corrosion resistant, heat treated and nitrated which makes our shafts durable and stronger than factory MK3 VR6 shafts. Mounting hardware, gaskets, boots, clamps and grease are included.

Additional Information

MK2 width, 4-Bolt Axles: Compatible with MK2 8v factory control arms or our MK2 Tubular Control Arms for improved handling. Since we utilize the MK2 subframe you can also run a factory sway bar.

MK2 Width, 5-Bolt Axles: Compatible with our MK2 5-Bolt Tubular Control Arms and factory MK2 sway bar. 5-Bolt axles utilize spindles off a MK3 VR6 or Corrado VR6.

MK3 Width, 4-Bolt Axles: Compatible with MK3 ABA Tubular Control Arms or MK3 ABA factory control arms. MK3 sway bar would be compatible, along with MK2 factory or MK3 ABA factory spindles. MK3 inner tie rods are required.

MK3 Width, 5-Bolt: Compatible with MK3 VR6 Tubular Control Arms or MK3 VR6 factory control arms. MK3 sway bar, along with MK3 VR6 5-bolt spindles. MK3 inner tie rods are required.

You can run the hydraulic clutch seamlessly in your MK2 factory pedal assembly with our Hydraulic Clutch Conversion Kit.
