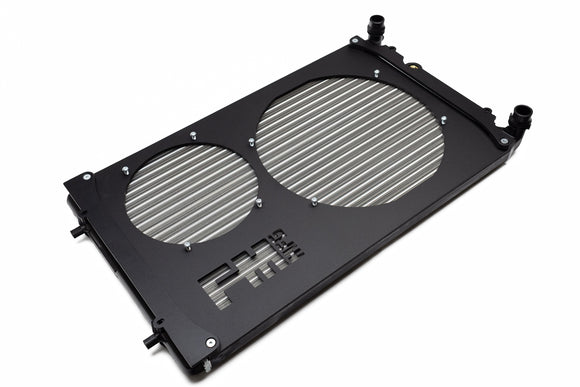

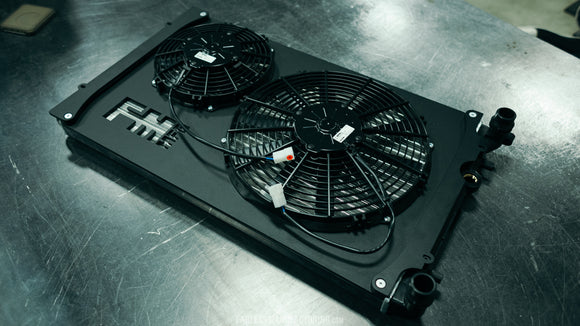

The Fabless MK4 Fan Shroud directly bolts onto MK4 radiators (VR6, 1.8T & TDI) and allows you to run a 9" & 13" Spal slim fan set up. This is an easy way to create more room up front while also improving the volume of air flow.
This is the perfect solution for MK4's in factory or swapped applications that need additional cooling, or are low on space and need the slim design.
- Compatible with all MK4 (1.8T, 2.0L & VR6) OEM and OEM Replacement Radiators
- Easy Install

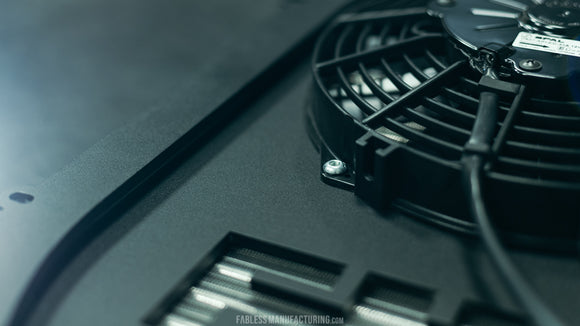

- Predrilled mounting holes for the Spal Fans
- Combined CFM: 1622

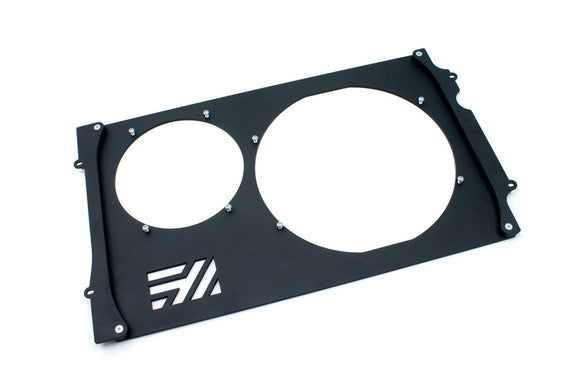

- Powder Coated Aluminum Fan Shroud (3 pieces)

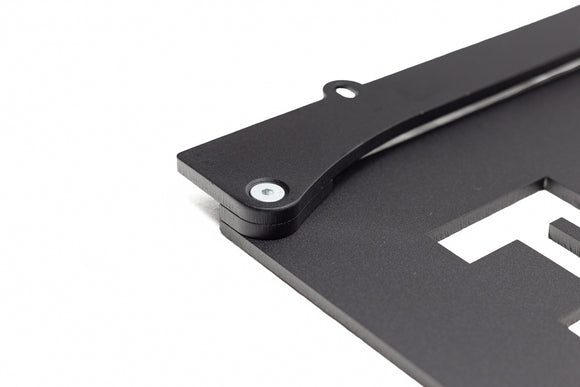

- Fan shroud hardware (4 countersunk bolts)
- Hardware for Fans
Radiator and Fans are not included but can be purchased separately.

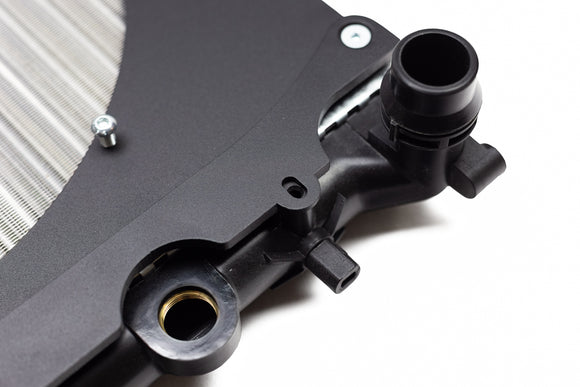

- VW MK4 Radiator, TDI, 1.8T, 2.0L, VR6
- Part # J0121253AD (Nissens, OEM Replacement)
- Part # 1J0121253S (Nissens, High Performance)
Note: We do not recommend This Mishimoto rad is considerably off compared to factory and to many modifications would be needed. We will have a Mishimoto specific option coming. Reach out to us for more details.

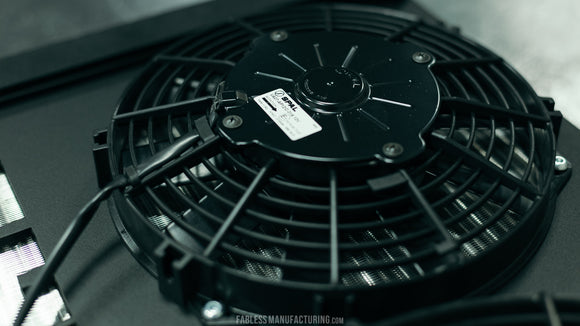

- 9" Spal Fan [Part #: 30100392]
- 13" Spal Fan [Part #: 30100398]
- Spal recommends running a dedicated 40 amp relay for the fan set up.

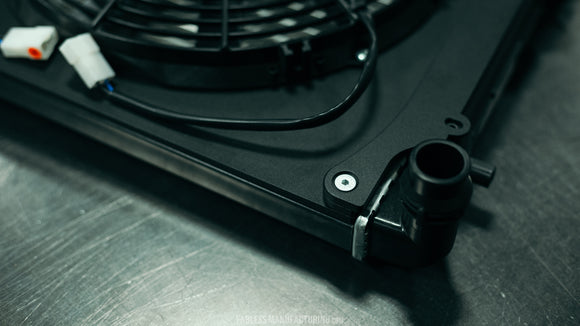

- Spal fan's don't plug into your factory wiring, so pigtails will be needed.
- Complete Wiring Kit and diagram coming soon!
