Re-Center Plates - VW MK4

Fabless Manufacturing SKU: 28-4200

5.0 / 5.0 based on 1 review

$249.00 USD

Shipping calculated at checkout

Available Now!

In stock and ready to ship!

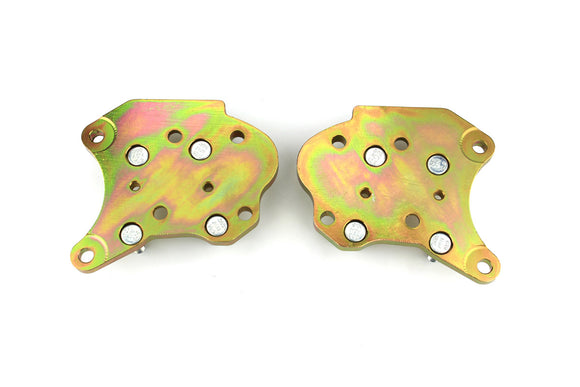

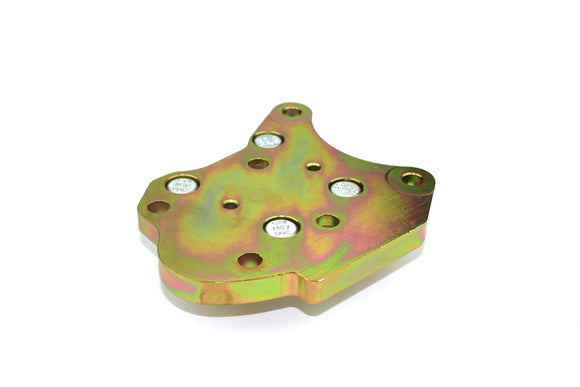

The Fabless MK4 Re-Center Plates (Drop Plates) are intended for use on ultra low vehicles to correct the position of the hub back to the center of the wheel arch. The Re-Center Plates give the rear of the vehicle 2.25 degrees of added camber, used to accommodate the thickness of the plate to help keep the top of the wheel in the same position.

The Re-Center plates are laser cut, CNC machined and coated in yellow Zinc for corrosion protection.

Removal of the rear bearing is required for installation and full install instructions are provided in every box.

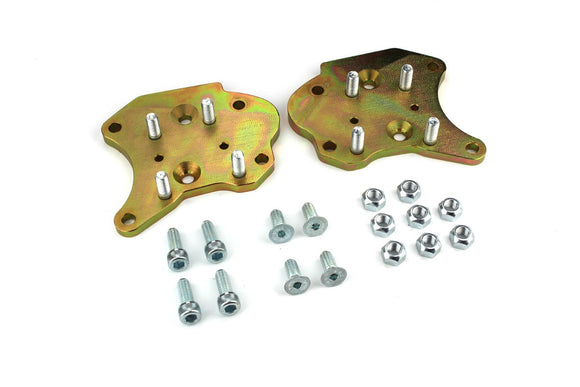

Included

  • Left & Right Zinc Plated Re-Center Plates

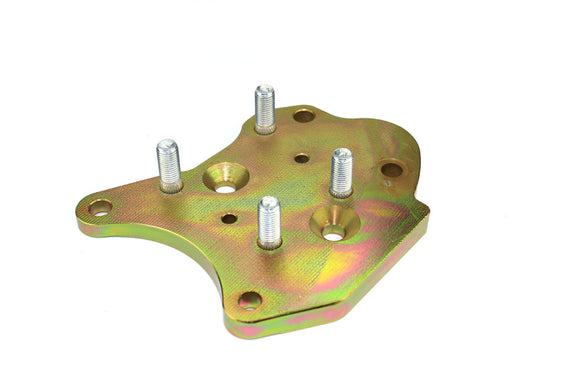

  • 8 Studs (installed)
  • 8 All Steel Lock Nuts
  • 4 M10 Socket Head Bolts
  • 4 M10 Countersunk Bolts
  • Installation Guide

Note: Loctite is only required on the eight (8) M10 bolts (2 drops each). All steel lock nuts are provided for the studs. The lock nuts are a much stronger and safer option but they can only be torqued down once due to the lock feature.

Compatibility

Vehicle

  • VW MK4 FWD Models
  • VW New Beetle
