TSI/02J Mount Kit - VW MK2 | MK3 | Corrado

The Fabless TSI/02M Mount Kit provides a solution to install Gen 1, 2 & 3 TSI Engines with an 02M Transmission in a MK2, Corrado or MK3.

Available in both subframe mounting options; MK2/Corrado G60 subframe or MK3/Corrado VR6 subframe.

Our mounts are stronger and stiffer than the factory mounts while also providing some adjustability on the Block Mount. The block mount has two positions; factory height & up to a 16mm drop (16mm lower setting with MK3/Corrado VR6 Subframe, 8mm drop with MK2/Corrado G60 subframe selection). The lower setting on the mount is useful for additional hood clearance but it also helps to level out the engine appearance without impacting the axle fitment. Which means factory 02J axles are compatible.

The Tubular Front Cross Bar with the TSI specific Front Engine Mount is required to bolt the TSI into your MK2, MK3 or Corrado. Although the transmission position is factory, allowing factory axles, there is no factory front engine mount for a TSI in the MK2, MK3 or Corrado. If you already own the Tubular Front Cross Bar or MAX version, reach out to us to purchase the TSI Front Engine Mount separately.

What’s Included

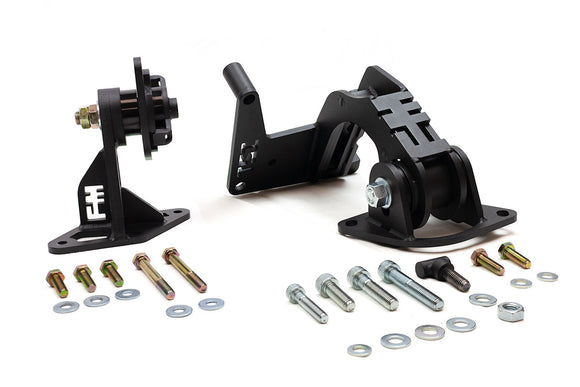

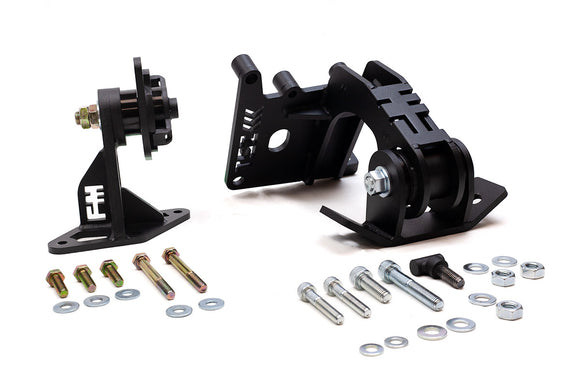

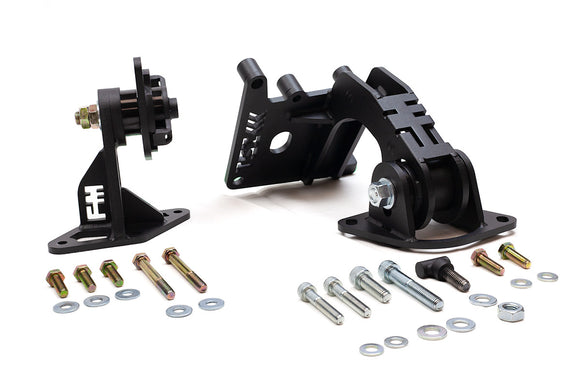

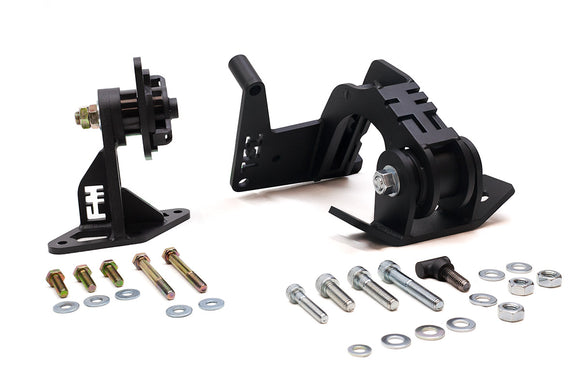

• TSI Block Mount with subframe Perch
• 02J Transmission Mount with subframe Perch
• Zinc plated mounting hardware
• Polyurethane bushings
• Black powder coat

Add-Ons/Compatible Products

• Tubular Front Cross Bar - VW MK2
• Tubular Front Cross Bar - VW Corrado
• Tubular Front Cross Bar - VW MK3
• Adjustable Upper Rad Mounts (VR6 Radiator) *MK2 application only
• Polyurethane Jack Pad

The Tubular Front Cross Bar MAX is also a compatible option for all Chassis listed.

Compatibility

Vehicles

• VW MK2 Golf/Jetta
• VW MK3 Golf/Jetta
• Corrado VR6/Corrado G60
• Passat*

*For Passat please contact for fitment.

Engines

TSI Gen 1 & Gen 2

• EA888 Gen 1
• EA888 Gen 2

TSI Gen 3

• EA888 Gen 3

Transmissions

• 02A 5-Speed
• 02J 5-Speed

Axles

• Factory 100mm Axles
