TSI/DSG Complete Mount Kit - VW MK2

The Fabless TSI/DSG Complete Mount Kit provides a solution to install Gen1, 2 & 3 TSI Engines with a DQ250 Transmission in a MK2. This kit is a full mount solution, providing an upgraded front cross member and all the mounts needed for the swap.

Available in both subframe mounting options; MK2/Corrado G60 subframe or MK3/Corrado VR6 subframe.

Our mounts are stronger and stiffer than the factory mounts while also providing some adjustability on the Block Mount. The block mount has two positions; factory height & up to a 16mm drop (16mm lower setting with MK3/Corrado VR6 Subframe, 8mm drop with MK2/Corrado G60 subframe selection). The lower setting on the mount is useful for additional hood clearance but it also helps to level out the engine appearance without impacting the axle fitment.

These mounts keep the engine in OEM position, which means DSG axles on the market are compatible.

NOTE: The subframe cup has to be moved back to clear the inner CV on the DSG transmission.

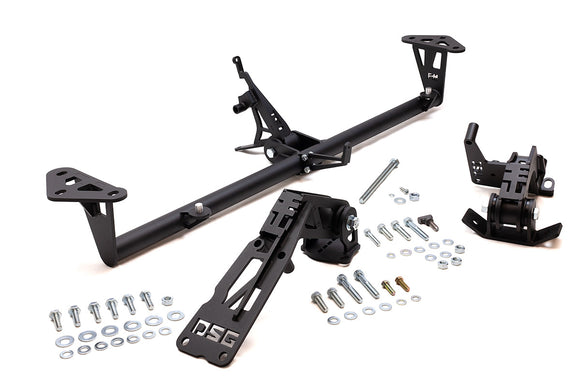

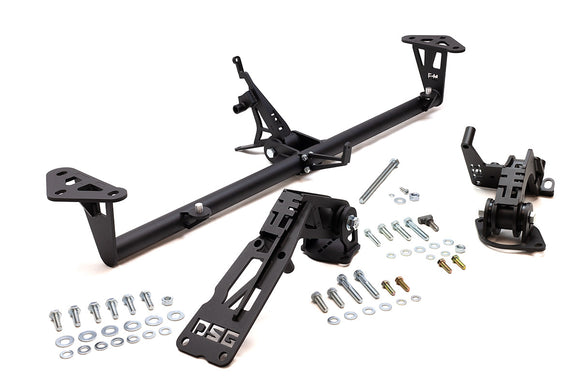

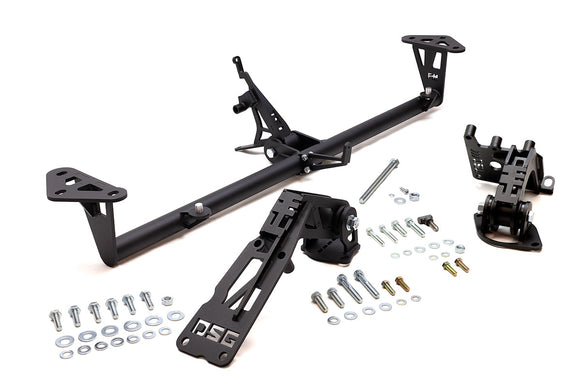

What’s Included

• TSI Block Mount with subframe Perch
• DSG Transmission Mount with subframe Perch
• MK2 Tubular Front Cross Bar with TSI Front Engine Mount
• Zinc plated mounting hardware
• Polyurethane bushings
• Black powder coat

Add-Ons/Compatible Products

• Adjustable Upper Rad Mounts (VR6 Radiator)

• Polyurethane Jack Pad

Compatibility

Vehicles

• VW MK2 Golf/Jetta
• Passat*

*For Passat, please contact for fitment.

Engines

TSI Gen 1 and Gen 2

• EA888 Gen 1
• EA888 Gen 2

TSI Gen 3

• EA888 Gen 3


Transmissions

• DSG DQ250

DQ250 Transmissions out of a MK6, MK7 or newer may come with an electronic diff (VAQ) that needs to be removed in order for the Block Mount to clear the transmission. The VAQ diff bolts right off the transmission and the cup can be installed back onto the transmission. This produces the same result as an DSG DQ250 without an electronic diff.

In AWD/quattro applications a Corrado G60/MK2 Subframe is needed for clearance. Otherwise modification is required for the axle to clear the engine perch on the subframe.

Axles

• • DSG Compatible Axles (not included)

Although our mounts are OEM position, custom axles are required to accommodate the transmission. The DSG is larger and uses larger inner CV's compared to the factory 02A Transmission in the MK2. Any axles on the market intended for a DSG in a MK2, MK3 or Corrado application will work with our mount positioning.

Radiators

• 8v/16v Radiator
• MK3 VR6 Radiator (North American)

Removable lower rad pins are provided for fitment of both rad types listed. For the MK2 rad support, we offer bolt in upper radiator mounts for both options.

Fans

A factory fan set up will work, however if space or engine cooling is a concern, a slim fan set up with Spal fans is recommended. Check out our Engine Cooling dropdown under Swap Parts.
