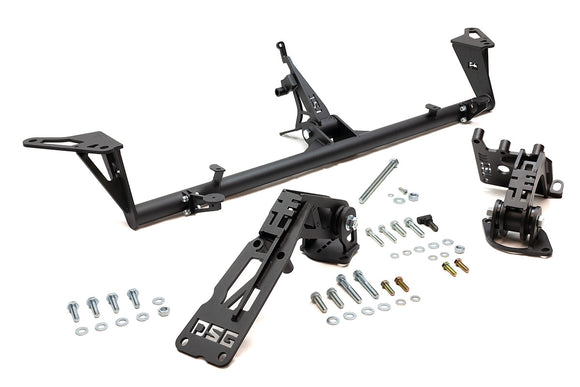

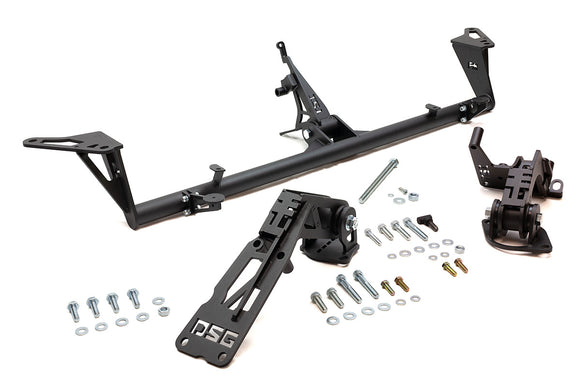

TSI/DSG Complete Mount Kit - VW MK3

The Fabless TSI/DSG Complete Mount Kit provides a solution to install Gen1, 2 & 3 TSI Engines with a DQ250 Transmission in a MK3. This kit is a full mount solution, providing an upgraded front cross member and all the mounts needed for the swap.

Our mounts are stronger and stiffer than the factory mounts while also providing some adjustability on the Block Mount. The block mount has two positions; factory height and a 16mm drop. The lower setting on the mount is useful for additional hood clearance but it also helps to level out the engine appearance without impacting the axle fitment.

These mounts keep the engine in OEM position, which means DSG axles on the market are compatible.

NOTE: The subframe cup has to be moved to clear the inner CV on the DSG transmission

What’s Included

• TSI Block Mount with subframe Perch*
• DSG Transmission Mount with subframe Perch
• MK3 Tubular Front Cross Bar with TSI Front Engine Mount
• Zinc plated mounting hardware
• Polyurethane bushings
• Black powder coat

Add-Ons/Compatible Products

• Radiator Mount Kit - VW MK3 (radiator bushings)
• Polyurethane Jack Pad

Compatibility

Vehicles

• VW MK3 Golf/Jetta LHD & RHD

Engine

TSI Gen 1 and Gen 2

• EA888 Gen 1
• EA888 Gen 2

TSI Gen 3

• EA888 Gen 3


Transmissions

• DSG DQ250


DQ250 Transmissions out of a MK6, MK7 or newer may come with an electronic diff (VAQ) that needs to be removed in order for the Block Mount to clear the transmission. The VAQ diff bolts right off the transmission and the cup can be installed back onto the transmission. This produces the same result as an DSG DQ250 without an electronic diff.

If you have a mk2 style subframe, contact us for the correct subframe perch for the block mount.

Axles

• DSG Compatible Axles (not included)

Although our mounts are OEM position, custom axles are required to accommodate the transmission. The DSG is larger and uses larger inner CV's compared to the factory 02A Transmission in the MK3. Any axles on the market intended for a DSG in a MK2, MK3 or Corrado application will work with our mount positioning.

Radiators

• Compatible with North American and European Rad supports and radiators.

Fans

A factory fan set up will work, however if space or engine cooling is a concern, a slim fan set up with Spal fans is recommended. Check out our Engine Cooling dropdown under Swap Parts.
